DENALIWELD
Air Cooled Laser Welding Machine
DENALIWELD

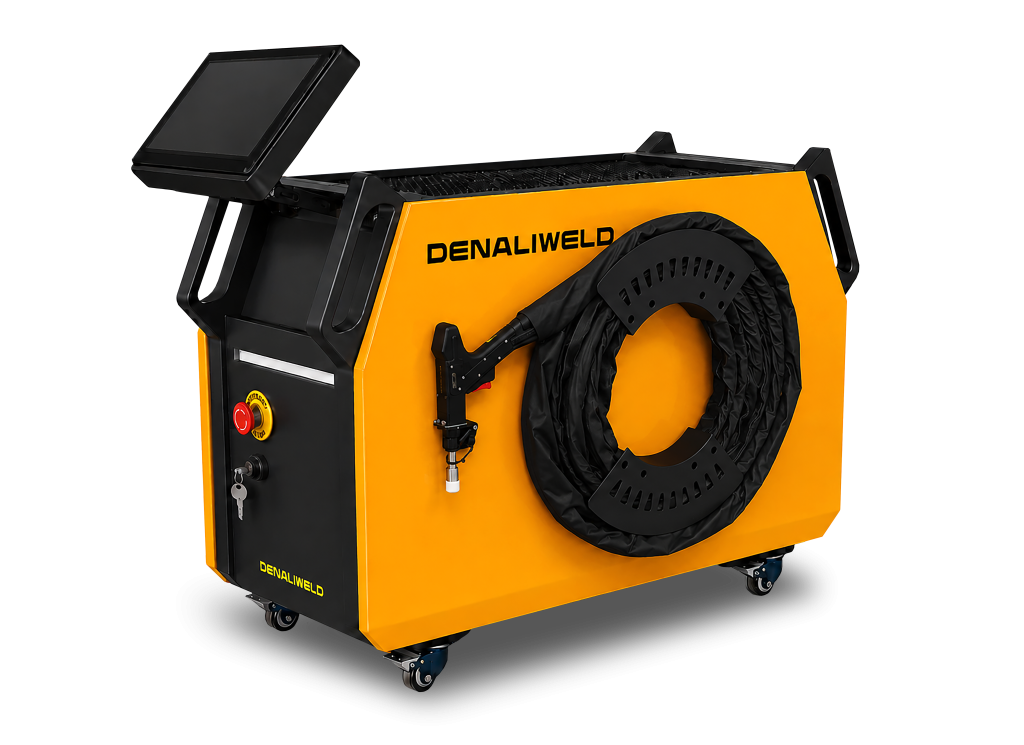

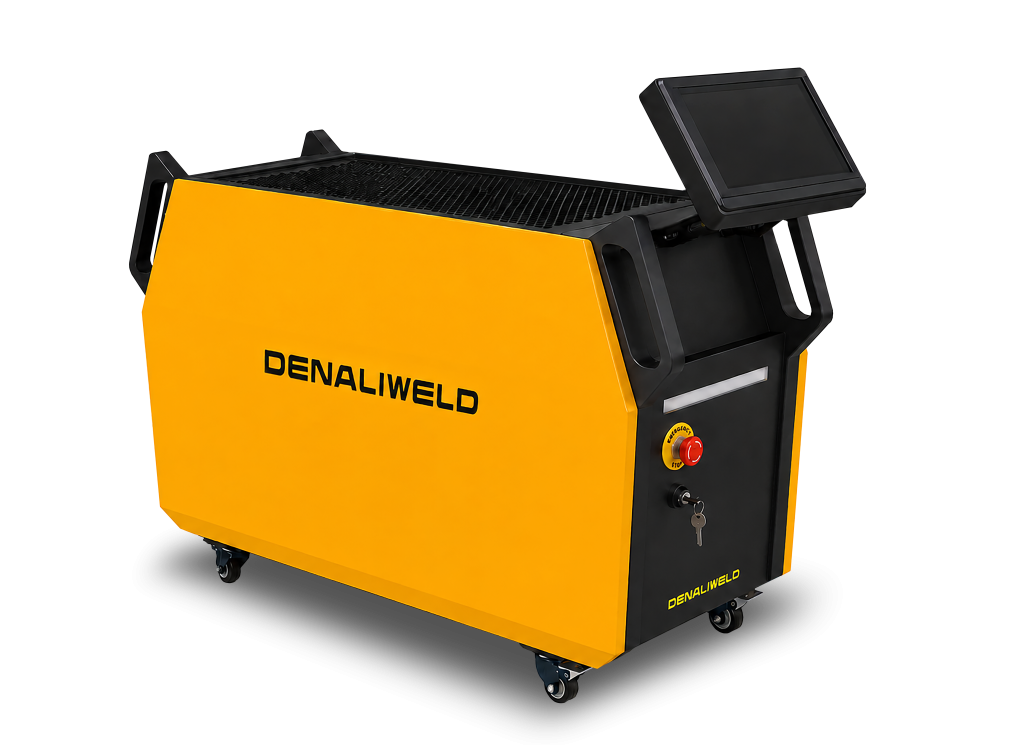

Air Cooled 1Kw 1.5Kw 2Kw Fiber Laser Welding Machine
Introducing the Jet Series Portable Laser Welders – engineered with precision and innovation. Our patented CUAL mosaic laser source ensures reliable continuous operation in extreme environments, ranging from -10°C to 40°C (14°F to 104°F).
Key Features:
- Compact & Lightweight:Weighing only 90 pounds, the Jet Series is the smallest and lightest portable laser welder available.
- Modular Design: Easy maintenance and repair with a user-friendly modular structure.
- Versatile Functionality:Three-in-one capabilities include Welding, Cleaning, and Seam Cleaning.
- Seam Tracking (Optional):Enhance precision with an optional seam tracking system.
- User-Friendly Operation:All parameters are pre-set for effortless, one-click operation.
- Data Tracking:Integrated welding data acquisition system for monitoring operations and calculating costs.
Automation Ready: Seamlessly switch to Cobot/Robot automation with DENALIWELD ROBOX™ at the touch of a button.
Experience the future of portable laser welding with the Jet Series – precision, portability, and power, redefined.
Features And Configuration
DenaliWeld Laser Source
Experience precision and power with the DenaliWeld Laser Source—delivering accurate output and consistently operating at full power.
- Patented CUAL Mosaic Laser Source: Ensures continuous, reliable performance across a wide temperature range of -10℃ to 40℃ (14℉ to 104℉), maintaining stability under demanding conditions.
- Advanced Laser Control System: Designed in-house by DenaliWeld, this system produces a smooth output curve, enhancing weld quality and delivering superior performance.
Built for accuracy, durability, and efficiency—DenaliWeld sets the standard for high-performance laser technology.
Benefit 1: Advanced 976nm Laser Pump Technology
Our laser pump utilizes cutting-edge 976nm technology, achieving an impressive 45% power transfer efficiency—far superior to the less than 20% efficiency of traditional 915nm pumps. Despite its compact size, it delivers higher output power while conserving energy. Although sensitive to temperature, our advanced chiller system ensures the working temperature remains consistently within a safe range, guaranteeing optimal performance and longevity.
Benefit 2: Premium U.S.-Made Control Chips
We use 100% U.S.-manufactured chips, with over 200 chips per laser source, to ensure exceptional performance and long-term stability. This commitment to high-quality components enhances the machine’s reliability, even under continuous operation.
Benefit 3: Proprietary Laser Control Software
Our independently developed laser control software precisely regulates laser output. By designing a custom output curve, we deliver intelligent and accurate power control, optimizing the welding process for smoother, stronger, and more precise welds.
DenaliWeld Welding Control System
- Intuitive Controls: All parameters can be quickly adjusted, allowing for seamless operation and faster setup.
- Flexible Laser Positioning: Effortlessly adjust the laser positionwithout worrying about laser deviation, ensuring precision every time.
- Advanced Safety Features: Built-in safety settingsprovide enhanced protection for both users and observers, ensuring a safer working environment.
One-Click Welding: Select from accurate preset parameters with a simple click to start welding, improving efficiency and reducing setup time.
Benefit 1: User-Friendly Interface

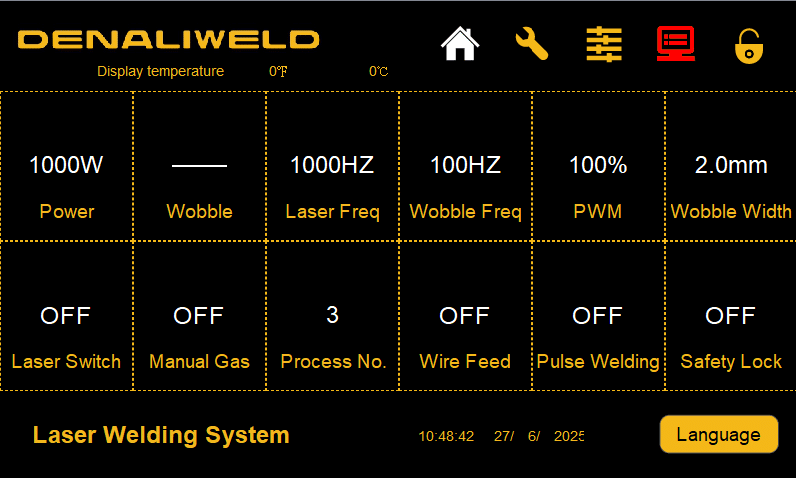

The intuitive main screen displays all essential information clearly, allowing for easy navigation and quick access to functions. Uploading pre-set parameters is simple, ensuring a streamlined and efficient workflow.
Benefit 2: Comprehensive Access to Settings
Gain full control with easy access to all machine settings. Monitor system status, receive real-time alarm notifications, and adjust the beam center effortlessly to ensure optimal welding precision.
Benefit 3: Advanced Welding Log System
Our Welding Log System records and stores key operational data, including welding time, power, and speed. This data can be saved and uploaded for detailed monitoring, improving quality control and process tracking.
DenaliWeld Laser Welding Head
Experience versatility and precision with the DenaliWeld 3-in-1 Multifunctional Laser Welding Head, designed to deliver superior performance and ease of use.
- 3-in-1 Multifunctionality: Combines welding, remote cleaning, and seam cleaningcapabilities in a single laser head, enhancing efficiency and reducing equipment needs.
- Intuitive Display with Status Indicators: Stay informed with a clear, easy-to-read display and indicator lights that provide real-time updates on the machine’s operational status.
- Independent Air-Cooled Design: Features a dedicated air-cooled channel for stable performance and consistent operation, even under demanding conditions.

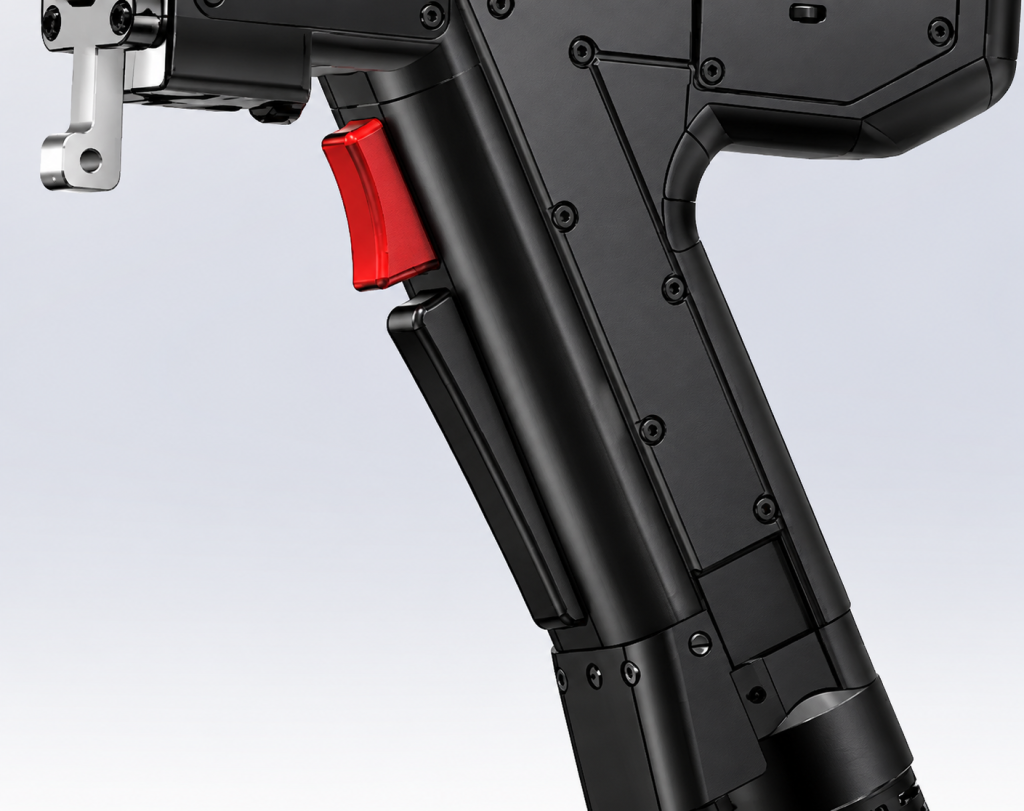

- Optional Emergency stop at will: An ergonomically designed safety system with a physical safety off button allows for quick and easy start/stop—even while wearing welding gloves—ensuring both convenience and safety.
Benefit 1
BV certified WPQR of welding. Based on the mentioned advantages above.
Benefit 2
Suitable for both EN-ISO (EU) and AWS (US) standard.

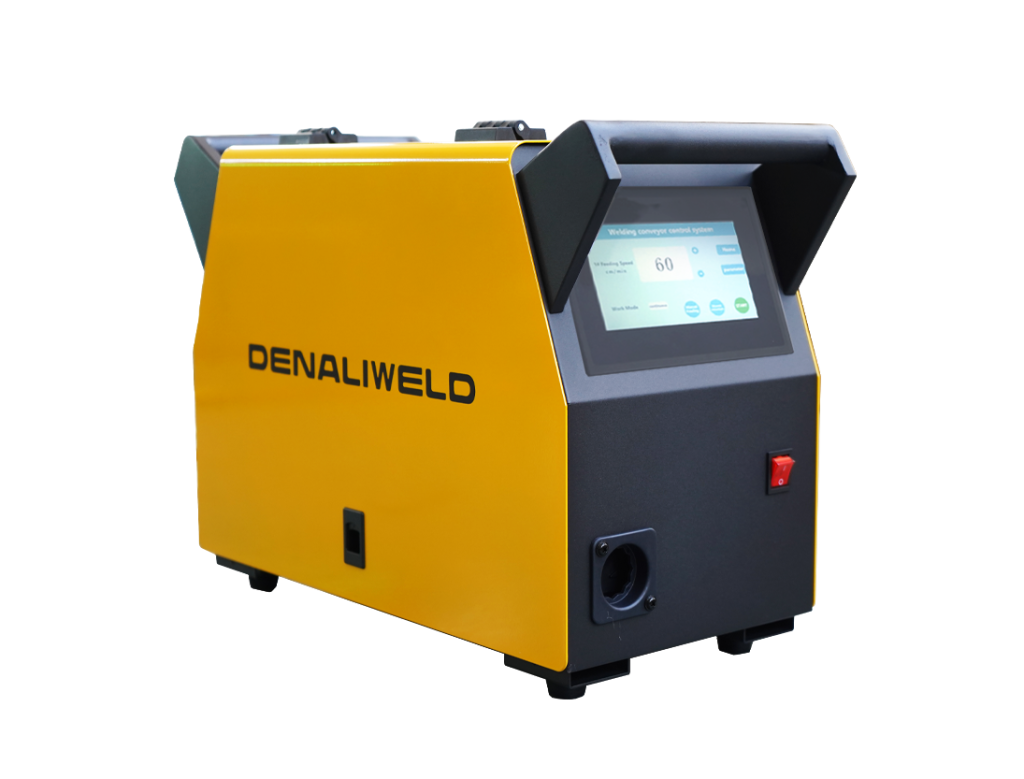

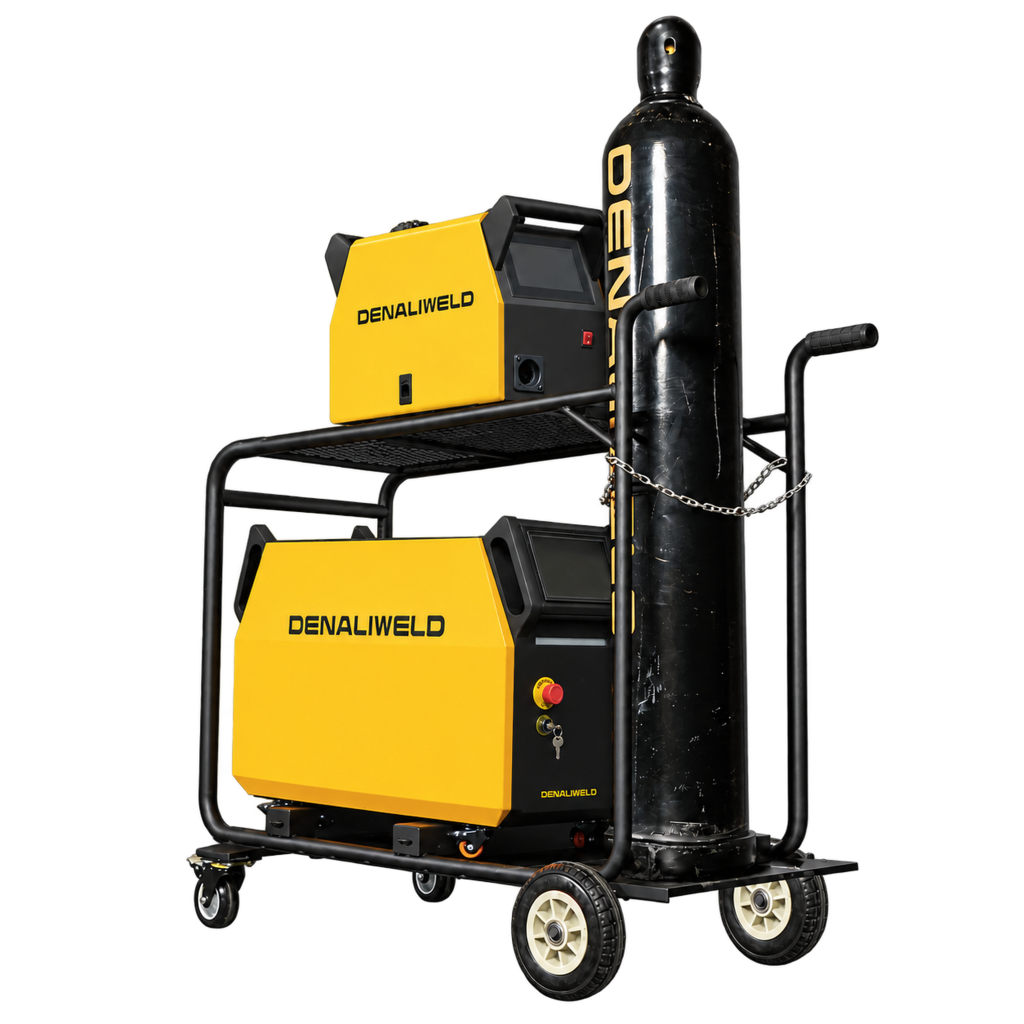

DenaliWeld Wire Feeder
Designed for precision and ease of use, the DenaliWeld Wire Feeder seamlessly integrates with your welding system to deliver consistent performance.
- Enhanced Wire Capacity: The newly designed system supports wire feeding up to 2mm (5/64), accommodating a wider range of welding applications.
- Double Wire Feeding: Offers dual-wire feeding capability, increasing efficiency and flexibility for complex welding tasks.
- Seamless Integration: Specifically designed to complement the DenaliWeld laser welding machine, ensuring smooth operation and optimal performance.

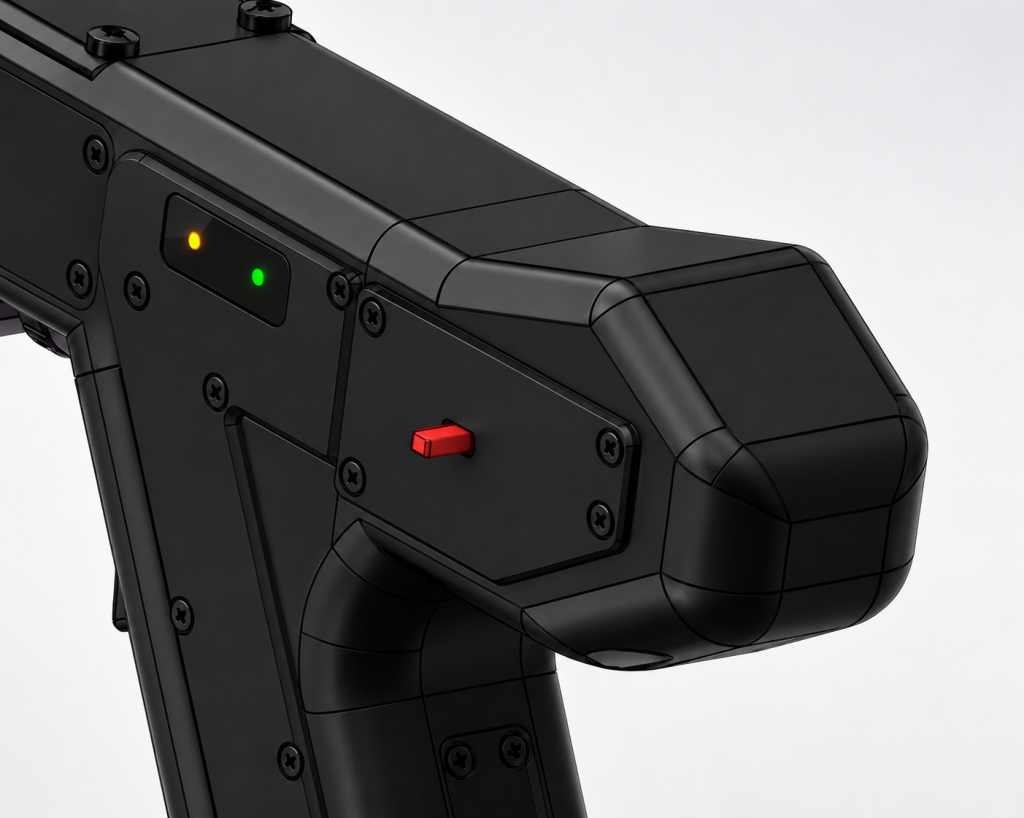

- User-Friendly Operation: Equipped with a physical control buttonfor easy operation, even while wearing welding gloves—ensuring quick adjustments and enhanced convenience.
Technical Parameters
| Item | JET1500 | JET2000 |
| Laser Power | 1500W | 2000W |
| Operating System | 3-in-1 / Cleaning | 3-in-1 / Cleaning |
| Laser Wavelength | 1060-1100 nm | 1060-1100 nm |
| Fiber Length | Approx. 10 m (32.8 ft) | Approx. 10 m (32.8 ft) |
| Operating Mode | Continuous/Modulated | Continuous/Modulated |
| Oscillation Operation Mode | Spot, Line | Spot, Line |
| Positioning | Laser red dot | Laser red dot |
| Air Pressure | 10-15 L/min (0.35-0.53 ft³/min) | 10-15 L/min (0.35-0.53 ft³/min) |
| Voltage | AC220V ±10% | AC220V ±10% |
| Power Consumption | 6.5kW | 7.7kW |
| Frequency | 50/60 Hz | 50/60 Hz |
| Current | 29A/10A | 35A/14A |
| Focus Length | 150mm (5.91 in) | 150mm (5.91 in) |
| Welding Speed | 0-80 cm/min (0-31.5 in/min) | 0-90 cm/min (0-35.4 in/min) |
| Cooling System | Air cooling | Air cooling |
| Laser Protecion Method | security lock + safety button | Security lock + safety button |
| Touch Panel | Monitor + PLC | Monitor + PLC |
| Wire Feeder | Single/Double Motor Automatic "push" and "pull" | Single/Double Motor Automatic "push" and "pull" |
| Wire Thickness (wire feeder) | 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm, 2.0 mm (0.030", 0.035", 0.045", 1/16", 5/64") | 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm, 2.0 mm (0.030", 0.035", 0.045", 1/16", 5/64") |
| Machine Weight | Approx. 68 kg (150 lb) | Approx. 74 kg (163 lb) |
| Machine Measurements | Height 736 mm (28.9 in), Width 433 mm (17 in), Length 883 mm (34.8 in) | Height 736 mm (28.9 in), Width 433 mm (17 in), Length 883 mm (34.8 in) |
| 3-in-1 Laser Head Weight | Approx. 900 g (1.98 lb) | Approx. 900 g (1.98 lb) |
| Cleaning Head | Approx. 980 g (2.16 lb) | Approx. 980 g (2.16 lb) |
