DENALIWELD

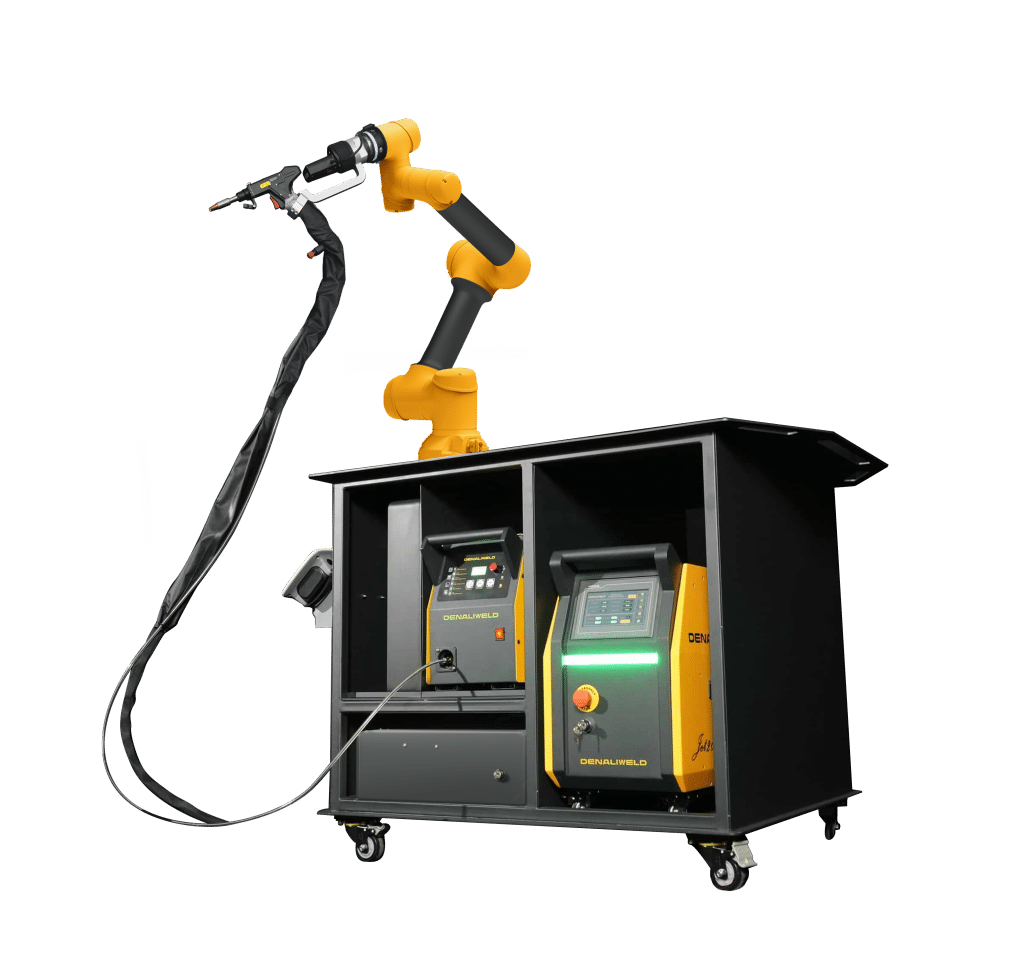

DenaliWeld COBOT Welding System
The DenaliWeld collaborative welding robot combines advanced automation with user-friendly technology, delivering precision, efficiency, and seamless integration — making it one of the most versatile collaborative robot welding solutions on the market today.
- Independently developed: Our independently developed robotic welding machines and welding control systems are compatible with both air-cooled and water-cooled Denaliweld models, providing flexible integration across multiple platforms.
- Modular Design for Easy Maintenance: Engineered for uncomplicated maintenance and quick repairs, reducing downtime and increasing productivity.
- Intelligent Cobot Programs: Features a simple user interface with pre-set parameters for one-click operation, making it easy for operators to achieve consistent and precise results.
- Welding Data Acquisition System: Monitors and records welding performance, assisting in operation tracking and cost calculations for optimized workflows.
- Seamless Automation Integration: With one-click switching, easily transition between Cobot and automated welding robot operation using the DENALIWELD ROBOX™ system.
- Wide Compatibility: DENALIWELD robotic welding equipment is compatible with most leading Cobot manufacturers, ensuring versatility in industrial applications.
- Advanced Automatic Welding Head: Utilizing the Automatic Welding Head (GCR 5/10/16) on our robotic welding arm enables real-time power adjustments throughout the welding process for enhanced precision and quality.
- Optional Seam Tracking System: Available with an optional seam tracking system, allowing for precise weld alignment and improved accuracy.
Features and Configuration
DenaliWeld Collaborative Robots (Cobots) are designed to deliver precision, efficiency, and ease of use for cobots welding applications, providing a cost-effective solution to elevate your welding operations.
- Lightweight and Flexible Design: As a compact collaborative welder, it’s easy to integrate into various production lines, providing versatile welding solutions for a wide range of applications.
- Intelligent and User-Friendly Operation: Operators can quickly program the cobots for specific welding tasks, allowing staff to focus on other critical activities.
- Enhanced Speed and Safety: With industry-leading operating speeds and advanced safety features, our collaborative welding robots ensure efficient production while maintaining a safe working environment.
- Cost-Effective Investment: Offering affordable automation without compromising quality.
- Maximum Operational Flexibility: Seamlessly switch between manual operation and automated welding, allowing for efficient workflow management.
Independently developed welding robots and welding control systems
DenaliWeld independently developed robotic welding systems and welding control systems, which are jointly tested to ensure optimal performance, reliability, and functionality to meet evolving user needs. We offer a wide selection of collaborative robot models, creating flexible and efficient automation solutions.
- Full compatibility: Compatible with air- and water-cooled DenaliWeld models, allowing for flexible cross-platform integration.
- Proven Performance: Rigorous joint testing ensures higher precision, smoother operation, and consistent results in real-world welding applications.
Seamless Transition from Manual to Automated Welding
DenaliWeld collaborative robotic welding solutions are designed as a flexible automated welding system, featuring handheld welding torches that enable a smooth transition between manual and automated welding.
- Quick Switching Mechanism: The laser welding machine is equipped with a manual/automatic switching button, allowing operators to easily toggle between handheld and robotic welding modes.
Enhanced Flexibility: This dual-functionality design supports customized workflows, enabling users to adapt quickly to changing production demands while maintaining precision and efficiency.
Simple and Easy to Use
DenaliWeld collaborative robotic welding robot system setups are engineered for simplicity, offering quick integration and hassle-free setup across a variety of robotic welding applications.
- Fast Installation: Designed for rapid deployment, allowing users to get up and running quickly with minimal downtime.
- User-Friendly Interface: Intuitive controls ensure easy operation, making it accessible for both experienced professionalsand new operators.
- Versatile Application: Compatible with various robotic welding tasks, delivering consistent performance across different production environments.

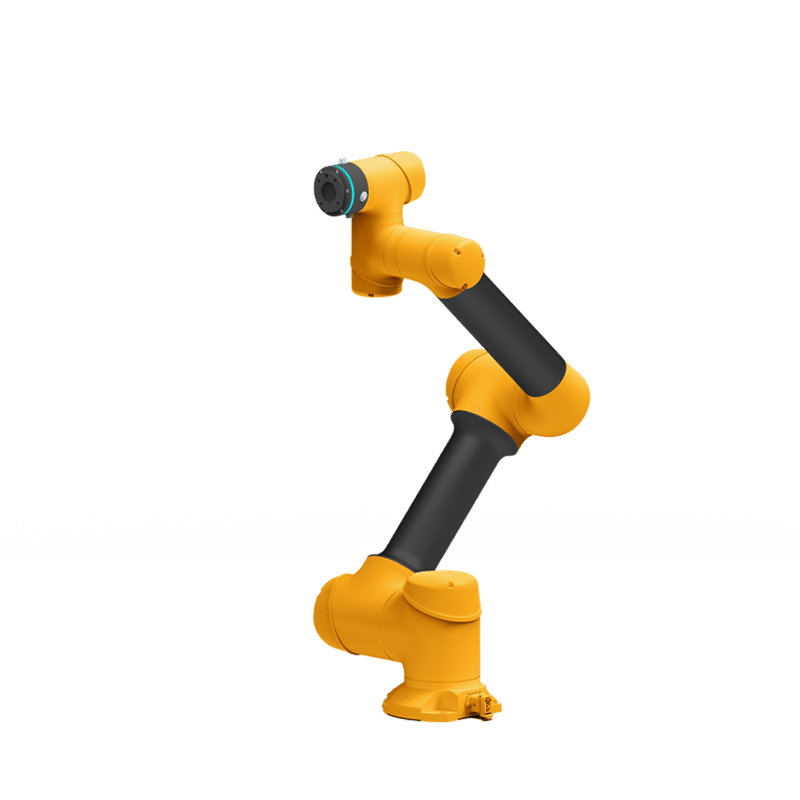

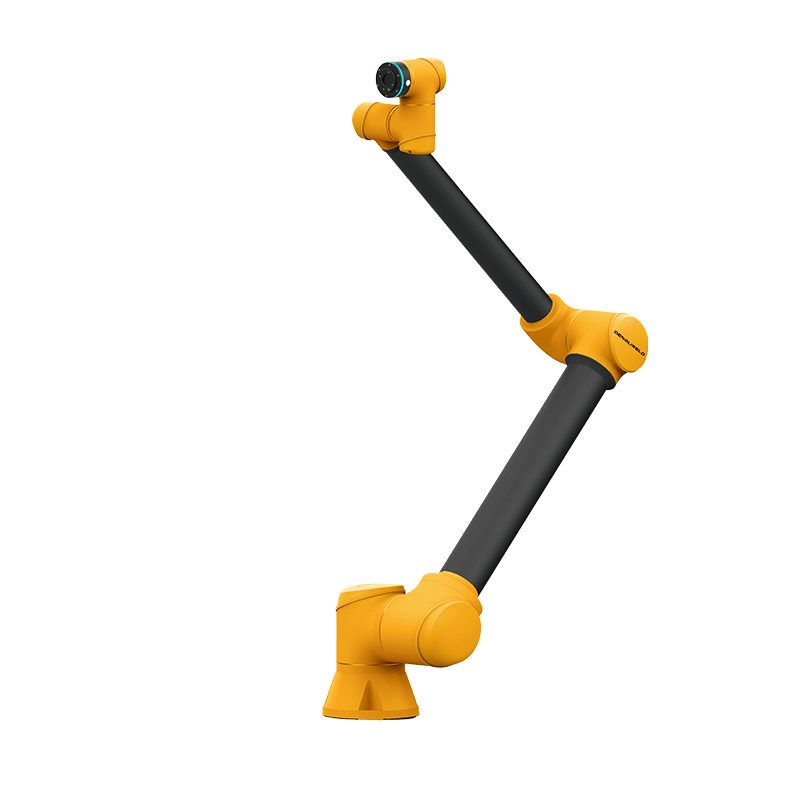

| Technical parameters | Item | Denbot5-910 | Denbot10-1300 | Denbot16-2000 |
| Robot body | Maximum Load | 5kg (11.2lb) | 10kg (22.05lb) | 16kg (35.27lb) |
| Number of axes | 6 | 6 | 6 | |
| Maximum speed at the end | 3.6m/s (11.81ft/s) | 3.8m/s (12.47ft/s) | 3.5m/s (11.48ft/s) | |
| Maximum linear velocity at the end | 1.5m/s (4.92ft/s) | 1.5m/s (4.92ft/s) | 1.8m/s (5.91ft/s) | |
| Effective working radius | 917mm (36.1in) | 1300mm (51.18in) | 2000mm (78.74in) | |
| Repeatability | ±0.02mm | ±0.03mm | ±0.05mm | |
| Power consumption | ≈200w | ≈400w | ≈600w | |
| Installation method | Ground based、Inverted type、cantilever type | |||
| IP Grade | IP54/65 | |||
| Ambient temperature | '-10℃ - 50℃ | '-10℃ - 50℃ | '-10℃ - 50℃ | |
| Storage temperature | '-40℃ - 55℃ | '-40℃ - 55℃ | '-40℃ - 55℃ | |
| End I/O port | 2DI、2DO、EtherCAT、RS485 | |||
| Robot packaging size | 698x588x450mm (27.48x23.15x17.72in) | 958x508x516mm (37.72x20x20.31in) | 1465x516x472mm (57.68x20.31x18.58in) | |
| Net weight | 22kg (48.5lb) | 37.8kg (83.33lb) | 60kg (132.28lb) | |
| Control cabinet | Input power supply | '100-240VAC 47-63HZ 10A | '100-240VAC 47-63HZ 10A | 220-240VAC 47 -63Hz 10A/100-200VAC 47-63HZ 16A |
| IP Grade | IP44 | IP44 | IP44 | |
| Communication interface | TCP/IP,Modbus/TCP,Profinet(Slave From),Ehernet/IP(Slave From),CAN,RS485 | |||
| IO interface | 16DI, 16DO (PNP,24V/Max 500mA) Configurable 8DI/8DO | |||
| Size | 410x306x292mm (16.14x12.05x11.5in) | |||
| Weight | 13.6kg (29.98lb) | 13.6kg (29.98lb) | 13.8kg (30.42lb) | |
| FlexPendant | External dimensions (Excluding grip handle) | 295x225x45mm (11.61x8.86x1.77in) | ||
| IP Grade | IP54 | IP54 | IP54 | |
| Screen size | 10.4 in | |||
| Screen resolution | 800*600@60HZ | |||
| Weight | 1.3kg (2.87lb) |
Why Choose Us.
DenaliWeld Advantage
Our Services.
We Provide Best Services
Laser Equipment Manufacturer
DenaliWeld, a globally recognized laser welding machine & laser rust removal machine manufacturer, harnesses cutting-edge proprietary technology to dominate the industry, consistently delivering unmatched precision and groundbreaking innovation to our worldwide client.
Local Services
Based in Illinois with 4 global offices, our local teams ensure fast response and professional 24/7 service after your purchase with fair laser welder cost.
Certification
DenaliWeld laser welding machine has passed SGS, CE (MD, EMC), WPQR certification, and C-Test, ensuring world-class quality, compliance with international safety standards, and proven reliability for industrial applications.
Research and Development
With our exceptional R&D capabilities, we stand among the few companies designing and manufacturing in-house laser sources, control systems, coolers, and setups, delivering precision, reliability, & tailored laser weld solutions for various industries.
Explore more about DenaliWeld laser welding solution
Global Services
DENALIWELD has four branches and more than 150+ dealer stores around the world. The branches can provide warehouses, inventory machines, spare parts, services, training and showrooms in local and neighboring countries.
APPLICATIONS
METAL JOB SHOP
Small batch · custom fab · 4–5× faster than TIG
AUTOMOTIVE
EV battery · body panels · HSS / Al / Mg alloys
AUTOMOTIVE
Laser welder machines are essential for welding body panels, doors, frames, exhaust systems, and fuel tanks. The laser welding machine ensures precise laser welds in complex designs, enhancing safety and fuel efficiency. High-speed automation from laser fiber welding meets massive production demands, solidifying its irreplaceable role in driving automotive innovation.
Electronics & Communication
Battery tabs · MEMS · sensor hermetic sealing
Electronics & Communication
The electronics industry depends on laser welders for delicate, high-speed laser welds without thermal damage. A laser welding machine supports miniaturization trends, joining small parts with precision for delicate components like circuit boards, chips, sensors, and displays. The repeatability of laser fiber welders ensures quality in mass production, cementing their importance in advancing communication technology.
AUTOMATED WELDING
Production lines · lights-out · ROBOX™ integration
AUTOMATED WELDING
Laser welder machines lead the charge in automated welding, integrating seamlessly with robotics. They deliver consistent, high-quality laser welds at rapid speeds, cutting labor costs and boosting output. The precision of laser fiber welding makes it ideal for automated lines, revolutionizing productivity across industries.
FAQ
What Is The Warranty For DenaliWeld Machines?
We will provide a 3-year warranty on the entire DenaliWeld machine, during which the customer will receive full and prompt service. In case of non-human damage, DenaliWeld will send spare parts free of charge to replace any damaged part on the machine.
Can I Get DenaliWeld’s Services Overseas?
DenaliWeld can provide overseas service including installation, commissioning, training and maintenance to customers all over the world.
How Can I Become One Of The DenaliWeld Agents In My Country?
To become an authorized Denaliweld Agent, please submit an application through the “contact us” tab expressing your interest in representing our products in your country. We’re looking for partners with strong local market knowledge, established distribution capabilities, and a commitment to quality and customer service.
How do I contact the DenaliWeld dealer in my local city?
If you would like to contact your local DenaliWeld agent, you can send an email to [email protected], or submit a form and we will ask them to contact you directly. You can also check whether there is a local dealer through our dealer locator. We usually indicate the dealer’s contact information.
What is the shipping method for DenaliWeld machines?
If a customer orders a small machine with wooden packaging, we will deliver the machine in a consolidated container, or if the customer orders two or more machines together, we will ship them in a container and send it to the port, which will help the customer save even more money.
What about the quality of DenaliWeld machines?
We have a world-class R&D team to support the quality of our machines, and our products are CE and SGS certified, proving the advantages of DenaliWeld machines.
Machine Show and Welding Test
Our Competences
Are Confirmed By Our Customers
We’re excited to team up with @WeldingTipsAndTricks to push the limits of the DenaliWeld laser welding machine!
It’s not just about speed—it’s also about precision and quality. Want to see the results?
CONTACT US
INTERESTED IN DISCUSSING?
Customize a solution to your needs today Experience a live demo and get free samples
