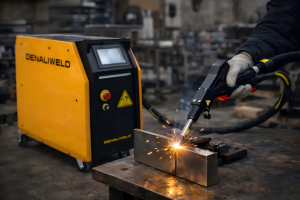

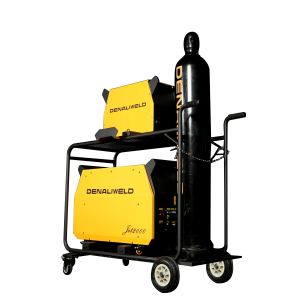

Denaliweld Jet Series
PROUDLY ASSEMBLED IN THE USA
PROUDLY ASSEMBLED IN THE USA
About us
DenaliWeld INC, is a proud employee-owned fiber laser welding machine manufacturer based in Chicago, USA. The company is bolstered by the most experienced engineers and design personnel in the laser industry with multiple innovative patents for our superior laser welding machines. All DenaliWeld machines are designed in Chicago and manufactured in Chicago factory. All laser welding machines have CE, FDA and SGS certifications.
Basic advantages
- Proud employee-owned company based and designed in Chicago.
- Patented CUAL mosaic laser source, reliable continuous operation, -20°C to 55 °C（-4°F to 130°F ）.
- Modular designed, easy for maintenance and repair.
- Jet series portable laser welders are only 90 pounds which makes them the Smallest in size and lightest in weight.
- Seam tracking systems are available as an option.
- Three functions in one machine: Welding, Cleaning and Seam cleaning.
- All parameters are pre-set, one click operation.
- Welding data acquisition system helps track operation and cost calculations.

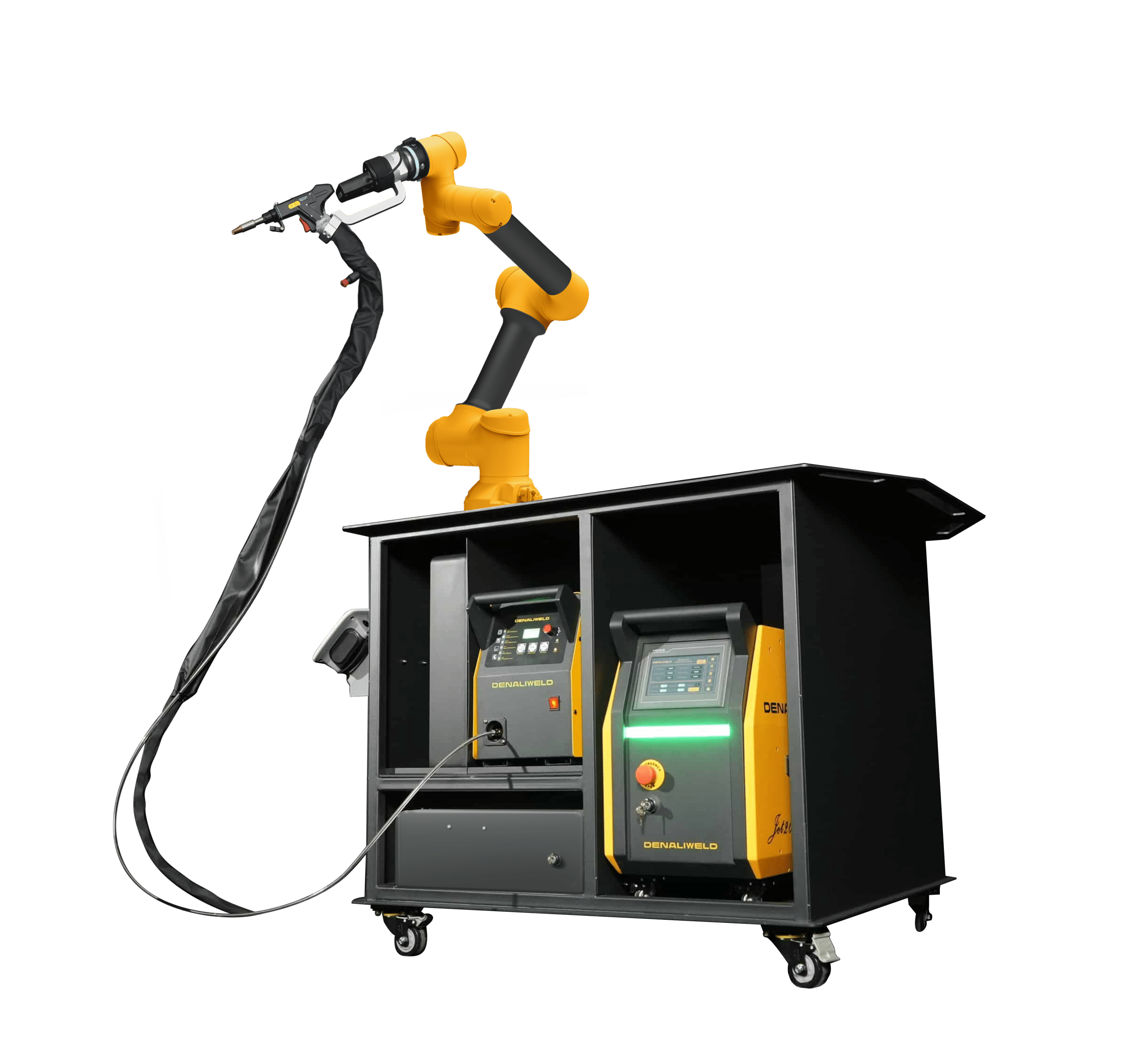

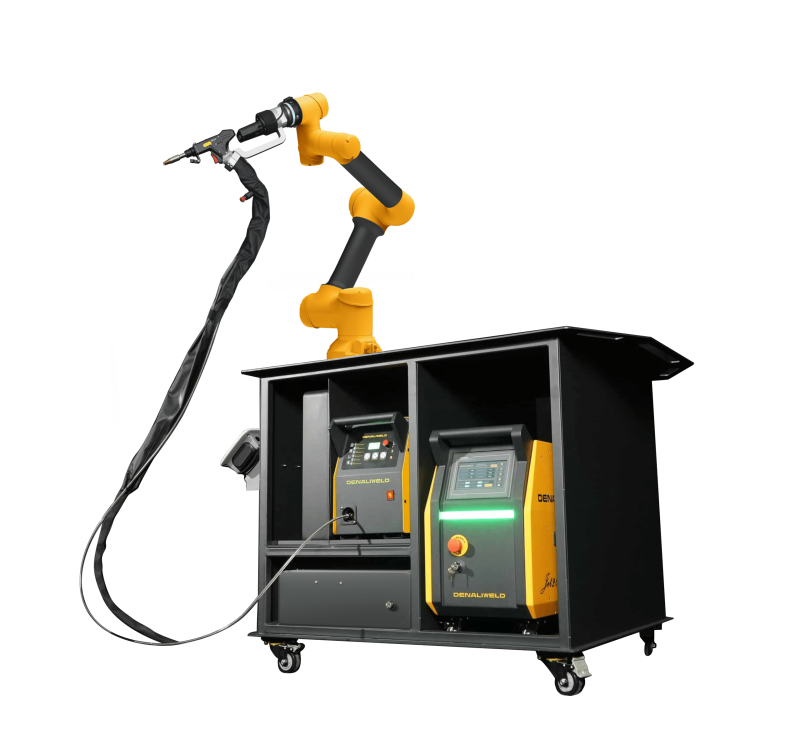

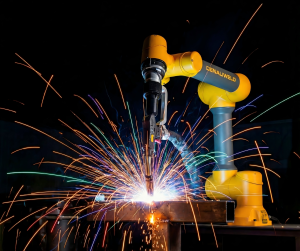

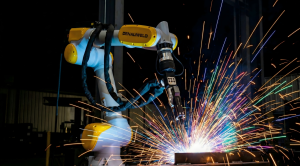

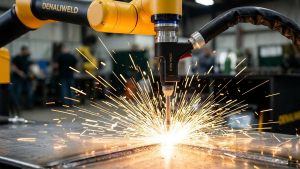

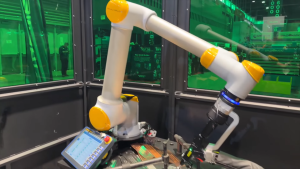

- One click switches to Cobot/Robot automation welding system** with DENALIWELD ROBOX™.
- Adaptable with DENERGY™ portable power bank, which is designed to power the machine working off the grid for a continuous 60mint.
DenaliWeld Laser Source
Accurate output and always comes with full power.
Patented CUAL mosaic laser source, continuous operation, reliable for -20℃ to 55℃ ( -4℉ to 130℉).
DenaliWeld independently designed laser control system, which produces a smooth output curve which makes a better weld.
DenaliWeld Welding Control System
- Easy to use, all parameters can be quickly adjusted
- Quickly adjust the laser position without worrying about laser deviation
- More safety settings for better protection of users and observers
- Accurate preset parameters that can be selected with a simple click to start welding
DenaliWeld Laser welding head
- 3-in-1 multifunctional laser head with welding, remote cleaning and seam cleaning functions
- Intuitive status display with indicator lights to keep track of the machine’s status
- Individual air-cooled design channel, four hours (with test records) of stable operation without overheating
- Ergonomically designed welding machine with a Physical safety off button for easy stop / start even with welding gloves on
Emergency stop at will
- An extra emergency stop button is positioned on the laser head which allows the users to shut down the machine immediately thereby reducing any potentially harmful occurrences.

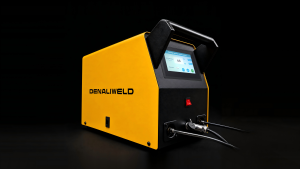

Automatic Wire Feeder
- All newly designed automatic wire feeders could feed up to 2mm of wire.
- Double Wire feeding available.
- Wire feeder is designed to complement the welding machine.
- Physical button, easy to operate even with welding gloves on.
| Item | JET1000 | JET1500 | JET2000 |
| Laser Power | 1000W | 1500W | 2000W |
| Operating System | 3in1 / Cleaning | 3in1 / Cleaning | 3in1 / Cleaning |
| Laser Wavelength | 1070 NM | 1070 NM | 1070 NM |
| Fiber Length | Approx. 10 m | Approx. 10 m | Approx. 10 m |
| Operating Mode | Continuous/Modulated | Continuous/Modulated | Continuous/Modulated |
| Oscillation Operation Mode | Single, Various Spots, Line | Single, Various Spots, Line | Single, Various Spots, Line |
| Positioning | Laser red dot | Laser red dot | Laser red dot |
| Air Pressure | 10-15L/min | 10-15L/min | 10-15L/min |
| Voltage | 220±10% | 220±10% | 220±10% |
| Power Consumption | 3kw | 4kw | 5KW |
| Frequency | 50/60 HZ | 50/60 HZ | 50/60 HZ |
| Currency | 29A | 29A | 36A |
| Focus Lenght | 150mm | 150mm | 150mm |
| Welding Speed | 0-65cm/min | 0-90cm/min | 0-90cm/min |
| Cooling System | Air cooling | ||
| Laser Protecion Method | security lock + safety button | ||
| Touch Panel | Monitor + PLC | ||
| Wire Feeder | Single/Double Motor Automatic "push" and "pull" | ||
| Wire Thickness in Automatic Mode | 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm | ||
| Machine Weight | Approx. 38kg/84bl | Approx. 40kg/88bl | Approx. 45kg/99bl |
| Machine Measurements | Height 637mm, Width 396mm, Length 830mm | ||
| 3in1 Laser Head Weight | Approx. 760g/1.67bl | ||
| Cleaning Head | Approx. 760g/1.67bl |
Basic advantages
- Proud employee-owned company based and designed in Chicago.
- Patented CUAL mosaic laser source, reliable continuous operation, -20°C to 55 °C（-4°F to 130°F ）
- Modular designed, easy for maintenance and repair
- Jet series portable laser welders are only 90 pounds which makes them the Smallest in size and lightest in weight.
- Seam tracking systems are available as an option.
- Three functions in one machine: Welding, Cleaning and Seam cleaning.
- All parameters are pre-set, one click operation.
- Welding data acquisition system helps track operation and cost calculations.
- One click switches to Cobot/Robot automation welding system** with DENALIWELD ROBOX™
- Adaptable with DENERGY™ portable power bank, which is designed to power the machine working off the grid for a continuous 60mint.
Main components
DenaliWeld Laser Source
Accurate output and always comes with full power.
Patented CUAL mosaic laser source, continuous operation, reliable for -20℃ to 55℃ ( -4℉ to 130℉).
DenaliWeld independently designed laser control system, which produces a smooth output curve which makes a better weld.
DenaliWeld Welding Control System
- Easy to use, all parameters can be quickly adjusted
- Quickly adjust the laser position without worrying about laser deviation
- More safety settings for better protection of users and observers
- Accurate preset parameters that can be selected with a simple click to start welding
DenaliWeld Laser welding head
- 3-in-1 multifunctional laser head with welding, remote cleaning and seam cleaning functions
- Intuitive status display with indicator lights to keep track of the machine’s status
- Individual air-cooled design channel, four hours (with test records) of stable operation without overheating
- Ergonomically designed welding machine with a Physical safety off button for easy stop / start even with welding gloves on
Emergency stop at will
- An extra emergency stop button is positioned on the laser head which allows the users to shut down the machine immediately thereby reducing any potentially harmful occurrences.
Automatic Wire Feeder
- All newly designed automatic wire feeders could feed up to 2mm of wire
- Double Wire feeding available
- Wire feeder is designed to complement the welding machine
- Physical button, easy to operate even with welding gloves on
Technical Parameters
| Item | JET1000 | JET1500 | JET2000 |
| Laser Power | 1000W | 1500W | 2000W |
| Operating System | 3in1 / Cleaning | 3in1 / Cleaning | 3in1 / Cleaning |
| Laser Wavelength | 1070 NM | 1070 NM | 1070 NM |
| Fiber Length | Approx. 10 m | Approx. 10 m | Approx. 10 m |
| Operating Mode | Continuous/Modulated | Continuous/Modulated | Continuous/Modulated |
| Oscillation Operation Mode | Single, Various Spots, Line | Single, Various Spots, Line | Single, Various Spots, Line |
| Positioning | Laser red dot | Laser red dot | Laser red dot |
| Air Pressure | 10-15L/min | 10-15L/min | 10-15L/min |
| Voltage | 220±10% | 220±10% | 220±10% |
| Power Consumption | 3kw | 4kw | 5KW |
| Frequency | 50/60 HZ | 50/60 HZ | 50/60 HZ |
| Currency | 29A | 29A | 36A |
| Focus Lenght | 150mm | 150mm | 150mm |
| Welding Speed | 0-65cm/min | 0-90cm/min | 0-90cm/min |
| Cooling System | Air cooling | ||
| Laser Protecion Method | security lock + safety button | ||
| Touch Panel | Monitor + PLC | ||
| Wire Feeder | Single/Double Motor Automatic "push" and "pull" | ||
| Wire Thickness in Automatic Mode | 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm | ||
| Machine Weight | Approx. 38kg/84bl | Approx. 40kg/88bl | Approx. 45kg/99bl |
| Machine Measurements | Height 637mm, Width 396mm, Length 830mm | ||
| 3in1 Laser Head Weight | Approx. 760g/1.67bl | ||
| Cleaning Head | Approx. 760g/1.67bl |
Laser Safety

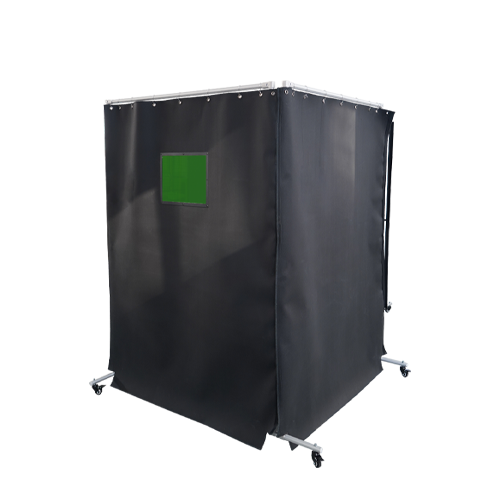

Welding station
- We offer a wide range of laser protection solutions
- Welding workstations provide complete protection of the welding area and are suitable for Class 4 laser work. Panels fitted with CE laser protection glass filter out 1064 wavelength laser light.
All-aluminum construction for easy handling and installation - Freely adjustable to the shape and size of the site.
Fitted with a safety door interlock for quick connection to the laser welding machine.
Laser protective helmet
In dual-layer design, the outer variable light module can effectively block welding generated light, UV and other potential hazards, the inner layer of the laser protection glass filters the 1064 wavelength fiber optic laser, which will ultimately protect the user.
- Can be equipped with DENALIWELD respirator, effective filtration of toxic dust and smoke.
