DENALIWELD
CW Laser Rust Removal Machine
Air/Water Cooling Optional
DENALIWELD
CW Laser Rust Removal Machine
- Reliable Continuous Operation: Engineered for consistent performance in environments ranging from -10°C to 40°C (14°F to 104°F).
- High Power Output: Delivers up to 2000 Wattsof laser power for fast, effective, and thorough rust removal.
- Modular Chiller Design: Easy maintenance and repairwith a modular cooling system that ensures optimal temperature control during extended use.
- Compact and Lightweight: Space-savingdesign with the lightest weight in its class, providing easy mobility and flexible operation.
- One-Click Operation: Pre-set parameters allow for simple, one-click activation, making the machine user-friendly and efficient.
Features And Configuration
DenaliWeld Laser Source
Built for precision, power, and reliability, the DenaliWeld Laser Source delivers consistent performance across a range of industrial applications, from robotic to hybrid welding.
- Accurate, Full-Power Output: Provides precise, stable laser delivery, ensuring full power output for superior weld quality.
- Compact & Reliable Design: Designed for continuous operation in demanding environments, with reliable performance from -10°C to 40°C (14°F to 104°F).
- Advanced Laser Control System: Independently designed by DenaliWeld, our system delivers a smooth output curve, resulting in cleaner welds and greater consistency.
- High-Power Capability:
- Up to 8000Woutput for robotic welding, providing speed and precision for automated systems.
- Up to 20000Woutput for hybrid welding, delivering unmatched power for high-performance industrial applications.
Benefit 1: Advanced 976nm Laser Pump Technology
Our laser pump utilizes cutting-edge 976nm technology, achieving an impressive 45% power transfer efficiency—far superior to the less than 20% efficiency of traditional 915nm pumps. Despite its compact size, it delivers higher output power while conserving energy. Although sensitive to temperature, our advanced chiller system ensures the working temperature remains consistently within a safe range, guaranteeing optimal performance and longevity.
Benefit 2: Premium U.S.-Made Control Chip
We use 100% U.S.-manufactured chips, with over 200 chips per laser source, to ensure exceptional performance and long-term stability. This commitment to high-quality components enhances the machine’s reliability, even under continuous operation.
Benefit 3: Proprietary Laser Control Software
Our independently developed laser control software precisely regulates laser output. By designing a custom output curve, we deliver intelligent and accurate power control, optimizing the welding process for smoother, stronger, and more precise cleaning.
DenaliWeld Welding Control System
- Intuitive Controls: All parameters can be quickly adjusted, allowing for seamless operation and faster setup.
- Flexible Laser Positioning: Effortlessly adjust the laser position without worrying about laser deviation, ensuring precision every time.
- Advanced Safety Features: Built-in safety settingsprovide enhanced protection for both users and observers, ensuring a safer working environment.
One-Click Welding: Select from accurate preset parameters with a simple click to start welding, improving efficiency and reducing setup time.
Benefit 1: User-Friendly Interface
The intuitive main screen displays all essential information clearly, allowing for easy navigation and quick access to functions. Uploading pre-set parameters is simple, ensuring a streamlined and efficient workflow.
Benefit 2: Comprehensive Access to Settings
Gain full control with easy access to all machine settings. Monitor system status, receive real-time alarm notifications, and adjust the beam center effortlessly to ensure optimal welding precision.
Benefit 3: Advanced Welding Log System
Our Welding Log System records and stores key operational data, including welding time, power, and speed. This data can be saved and uploaded for detailed monitoring, improving quality control and process tracking.

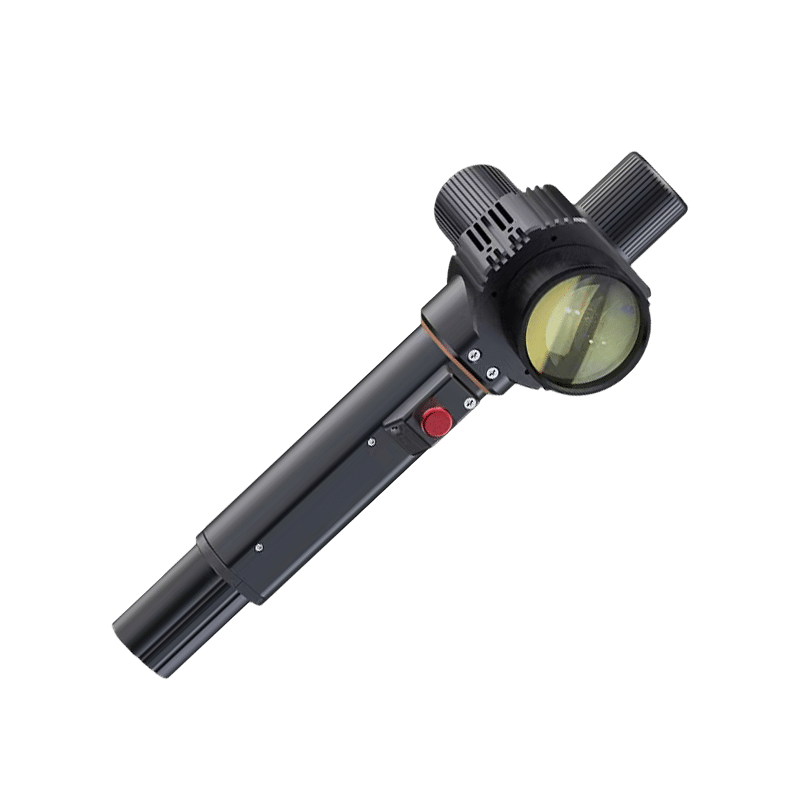

DenaliWeld Laser Cleaning Head
Engineered for efficiency and user comfort, the DenaliWeld Laser Cleaning Head delivers stable performance and intuitive operation for demanding industrial applications.
- Advanced Cooling System: Individual air-cooled design channelensures stable operation for up to four hours (based on test records) without the risk of overheating.
- Ergonomic Design: Designed for ease of use, providing comfortable handlingeven when wearing cleaning gloves.
- Enhanced Safety (Optional): Available with an ergonomically designed welding machinethat includes a physical safety off button for quick and secure start/stop operation—even with gloves on.
Technical Parameters
| Item | DENALI-1000W | DENALI-1500W | DENALI-2000W |
| Laser Power | 1000W | 1500W | 2000W |
| Laser Wavelength | 1060-1100 NM | ||
| Fiber Length | 10m | ||
| Operation Model | continuous/modulated | ||
| Positioning | red laser dot | ||
| Gas Flow | 20-25L/min | ||
| Voltage | 208-230V | ||
| Power Consumption | 5KW | 7KW | 9KW |
| Frequency | 50/60 HZ | ||
| Current | 23A | 30A(1phase) | 39A(1phase) |
| Laser Head Weight | 980g | ||
| Laser Head Operation Mode | Oscillation / Spot / Line | ||
| Focus Length | 800mm | ||
| Swing width | 0-300mm | ||
| Cooling | Distilled Water/Air | ||
| Laser Control Method | laser enable + security lock | ||
| Touch Scree | PLC screen and board |
Why Choose Us.
DenaliWeld Advantage
Our Services.
We Provide Best Services
Laser Equipment Manufacturer
DenaliWeld, a globally recognized laser equipment manufacturer, harnesses cutting-edge proprietary technology to dominate the laser welding industry, consistently delivering unmatched precision and groundbreaking innovation to our worldwide client.
Local Services
Based in Illinois with 4 global offices, our local teams ensure fast response and professional 24/7 service after your purchase with fair laser welder cost.
Certification
Machine passed SGS,CE(MD,EMC),WPQR certification &c test.
Research and Development
With our exceptional R&D capabilities, we stand among the few companies designing and manufacturing in-house laser sources, control systems, coolers, and setups, delivering precision, reliability, & tailored laser weld solutions for various industries.
Explore More
Global Services
DENALIWELD has four branches and more than 150+ dealer stores around the world. The branches can provide warehouses, inventory machines, spare parts, services, training and showrooms in local and neighboring countries.
USA
2531 Technology dr 310 Elgin IL 60124
Europe
Hantverksgatan 3 S-533 33 Gotene
Australia
1310 Boundary Road Wacol QLD 4076
Japan
中町3丁目10-11 小田原市, 神奈川県
FAQ
What Is The Warranty For DenaliWeld Machines?
We will provide a 2-year warranty on the entire DenaliWeld machine, during which the customer will receive full and prompt service. In case of non-human damage, DenaliWeld will send spare parts free of charge to replace any damaged part on the machine.
Can I Get DenaliWeld’s Services Overseas?
DenaliWeld can provide overseas service including installation, commissioning, training and maintenance to customers all over the world.
How Can I Become One Of The DenaliWeld Agents In My Country?
A detailed answer to provide information about your business, build trust with potential clients, and help convince the visitor that you are a good fit for them.
How do I contact the DenaliWeld dealer in my local city?
If you would like to contact your local DenaliWeld agent, you can send an email to [email protected], or submit a form and we will ask them to contact you directly. You can also check whether there is a local dealer through our dealer locator. We usually indicate the dealer’s contact information.
What is the shipping method for DenaliWeld machines?
If a customer orders a small machine with wooden packaging, we will deliver the machine in a consolidated container, or if the customer orders two or more machines together, we will ship them in a container and send it to the port, which will help the customer save even more money.
What about the quality of DenaliWeld machines?
We have a world-class R&D team to support the quality of our machines, and our products are CE and SGS certified, proving the advantages of DenaliWeld machines.
CONTACT US
INTERESTED IN DISCUSSING?
Customize a solution to your needs today Experience a live demo and get free samples
