DENALIWELD
Laser Safety Curtain
DENALIWELD

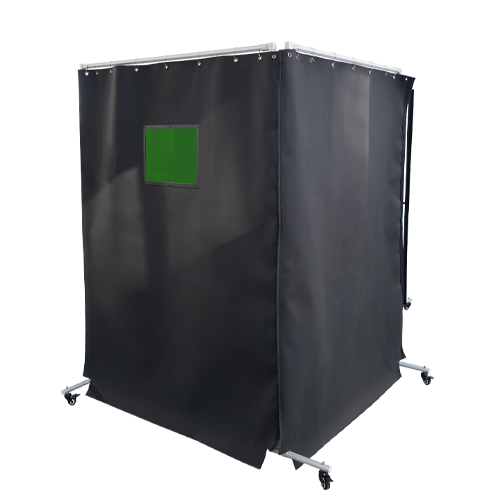

DenaliWeld Laser Safety Curtain
- Dedicated Laser Safety Curtain: Specifically developed to resist high-energy laser irradiation, far from conventional fire-resistant fabric or ordinary PVC fire curtains.
- Rich Extension Functions: Laser safety windows, laser warning lights, and laser safety interlocks can be added.
- Excellent Flame Retardancy: Passed the NFPA701:2023 flame retardancy test, self-extinguishing upon removal from flame, with no melting drops or fragments.
- Comprehensive Compliance:Certified by authoritative institutions, meeting laser safety standards in EU, US, and International Electrotechnical Commission (lEC).
- Certified Optical Protection (OD Rated)
- Fire-Retardant & Heat Resistant
- Heavy-Duty Industrial Durability
- Seamless Modular Connection
Technical Parameters
| The Upgraded Industrial Version Laser Safety Curtain Pro | |
| PEL | PEL> 543.348 W/cm², Test Wavelength: 1070 nm, Spot Radius: Ф=1 mm, Test Duration: T=100 s |
| Thickness | 1.4mm |
| Weight | 1.7kg/m² |
| Single measurement | Height: 2055 mm (80.9 in), Width: 1500 mm (59.1 in),Weight: 13.1kg |
| Actual Test Data | The standard installation position resists 400W CW laser direct exposure for 10 seconds without penetration, and 107W CW laser direct exposure for 100 seconds without penetration. |
| Material | Composite material with special coating |
| Color | Black and Customizable |
| Laser Safety Standards | GB 7247.1/4/13、IEC 60825-1/13、CE/EN 60825-1/4 |
| Flame Retardant Properties | Passed the NFPA701:2023 Test |
| Features | Low Reflection (≈4%),Aging Resistance, Corrosion Resistance, Flame Retardant &Temp Resistance, Abrasion Resistance, Dirt Resistance |
| Warning | Curtains are damaged with an appearance of white smog, please do NOT continue to use. |
| Standard Configuration | Eyelets, Laser warning sign, Hook&loop fastener |
| Applicable Laser Types | All wavelengths and all lasers |
| Applicable Environment | Class 4 laser, Laser labs, Laser devices, Laser processing workplace |
Why Choose Us.
DenaliWeld Advantage
Our Services.
We Provide Best Services
Laser Equipment Manufacturer
DenaliWeld, a globally recognized laser equipment manufacturer, harnesses cutting-edge proprietary technology to dominate the laser welding industry, consistently delivering unmatched precision and groundbreaking innovation to our worldwide client.
Local Services
Based in Illinois with 4 global offices, our local teams ensure fast response and professional 24/7 service after your purchase with fair laser welder cost.
Certification
Machine passed SGS,CE(MD,EMC),WPQR certification &c test.
Research and Development
With our exceptional R&D capabilities, we stand among the few companies designing and manufacturing in-house laser sources, control systems, coolers, and setups, delivering precision, reliability, & tailored laser weld solutions for various industries.
Explore More
Global Services
DENALIWELD has four branches and more than 150+ dealer stores around the world. The branches can provide warehouses, inventory machines, spare parts, services, training and showrooms in local and neighboring countries.
USA
2531 Technology dr 310 Elgin IL 60124
Europe
Hantverksgatan 3 S-533 33 Gotene
Australia
1310 Boundary Road Wacol QLD 4076
Japan
中町3丁目10-11 小田原市, 神奈川県
FAQ
What Is The Warranty For DenaliWeld Machines?
We will provide a 2-year warranty on the entire DenaliWeld machine, during which the customer will receive full and prompt service. In case of non-human damage, DenaliWeld will send spare parts free of charge to replace any damaged part on the machine.
Can I Get DenaliWeld’s Services Overseas?
DenaliWeld can provide overseas service including installation, commissioning, training and maintenance to customers all over the world.
How Can I Become One Of The DenaliWeld Agents In My Country?
A detailed answer to provide information about your business, build trust with potential clients, and help convince the visitor that you are a good fit for them.
How do I contact the DenaliWeld dealer in my local city?
If you would like to contact your local DenaliWeld agent, you can send an email to [email protected], or submit a form and we will ask them to contact you directly. You can also check whether there is a local dealer through our dealer locator. We usually indicate the dealer’s contact information.
What is the shipping method for DenaliWeld machines?
If a customer orders a small machine with wooden packaging, we will deliver the machine in a consolidated container, or if the customer orders two or more machines together, we will ship them in a container and send it to the port, which will help the customer save even more money.
What about the quality of DenaliWeld machines?
We have a world-class R&D team to support the quality of our machines, and our products are CE and SGS certified, proving the advantages of DenaliWeld machines.
